Spotlight on Torq/Lite's Inline IU-XL Series
Low Profile Hydraulic Ratcheting Wrenches
Each IU-XL model covers a range of nut sizes, by changing out only the hex heads on the tool.

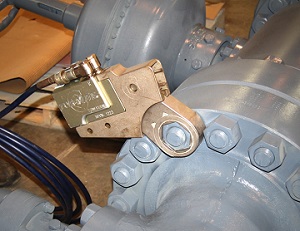

The IU-XLs are designed to fit in difficult spaces.
Powerful, durable and straightforward to use.
Features of the IU-XL series:
Inline Drive - Standard Fractional and Special sizes available (3/4" to 7 3/4" ATF).
Drive Pin Design - Allows for slimmer design to fit more applications, including 57 API flanges.
Piston Rod - Increases tool accuracy and reduces internal moving parts.
Unibody - Cylinder and Body are all one unit. Lightweight yet durable.
Multi-Axis Porting - Swivels can be relocated to the back of the tool, for application flexibility.
360° Swivels - Rotate on both horizontally and vertically, helps eliminate hose binding.
| Max Ft/Lbs @10K PSI | Length | Height | Body Width | Head Width |
Range ATF |
|
| IU-1XL | 1,294 | 6.25" | 4.0" | 1.1" | 0.95" | 3/4" to 2" |
| IU-3XL | 3,074 | 7.0" | 5.75" | 1.45" | 1.2" | 1 1/4" to 2 15/16" |
| 1U-7XL | 6,899 | 9.25" | 6.25" | 1.5" | 1.5" | 2" to 3 7/8" |
| 1U-10XL | 9,900 | 9.75" | 8.0" | 1.95" | 1.95" | 2 3/8" to 4 1/4" |
| IU-17XL | 15,951 | 11.25" | 9.25" | 1.95" | 2.45" | 2 3/4" to 5 3/8" |
| IU-25XL | 23,620 | 11.25" | 9.25" | 2.9" | 2.95" | 3 1/2" to 5 3/4" |
| IU-50XL | 44,785 | 15.375" | 10.5" | 2.9" | 2.95" | 4 5/8" to 7 1/4" |
